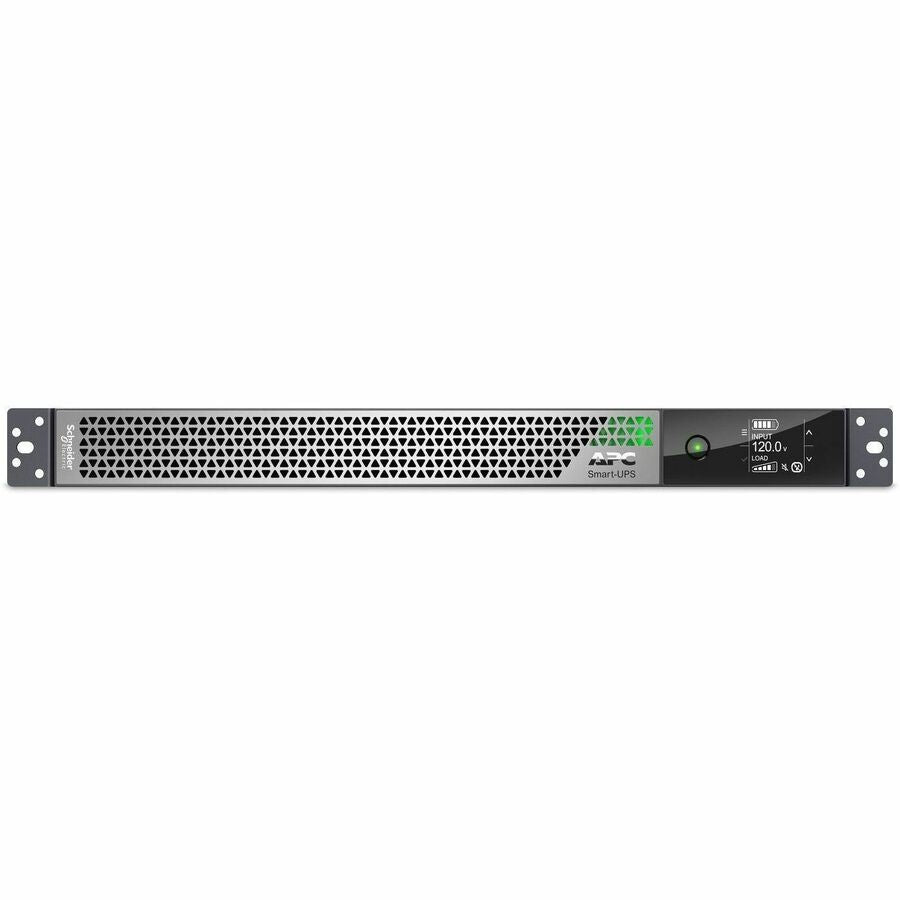

APC Smart-UPS Ultra On-Line 2200VA Lithium-ion Rack/Tower 1U 120V 5x 5-20R 1x L5-20R NEMA outlets Network Card Extended runtime W/rail kit
$5,443.94
Sale price
$5,443.94
Regular price
Skip to product information
APC Smart-UPS Ultra On-Line 2200VA Lithium-ion Rack/Tower 1U 120V 5x 5-20R 1x L5-20R NEMA outlets Network Card Extended runtime W/rail kit
$5,443.94
Sale price
$5,443.94
Regular price
General Information
|
APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with Embedded Network Port. This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. More from the Manufacturer |
Technical Information
| Plug/Connector Type: | NEMA 5-20P |
| Receptacle Type: | NEMA 5-20P |
| Receptacle Detail: | 1 x NEMA L5-20R |
| Receptacle Detail: | 5 x NEMA 5-20R |
| Cord Length: | 7.87 ft |
| Phase: | Single Phase |
| Application/Usage: | Voice/Data Network |
| Application/Usage: | Medical Laboratory |
| Application/Usage: | Light Industrial Application |
| Application/Usage: | Retail |
| Application/Usage: | Server |
Power Description
| Load Capacity (VA): | 2200 VA |
| Load Capacity (Watt): | 2200 W |
| Input Voltage: | 120 V AC |
| Input Voltage: | 125 V AC |
| Output Voltage: | 120 V AC |
| Output Voltage: | 125 V AC |
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave |
Display & Graphics
| Display: | LCD |
Management
| Network Management: | Network Card |
| Alarm: | Yes |
Interfaces/Ports
| Network (RJ-45): | Yes |
| USB: | Yes |
| EPO Port: | Yes |
Battery Information
| Battery Chemistry: | Lithium Ion (Li-Ion) |
| Battery Size: | 50V |
| Battery Energy: | 1123.2 kJ |
| Backup/Run Time (Full Load): | 6.05 Minute |
| Backup/Run Time (Half Load): | 12.65 Minute |
| Typical Battery Recharge Time: | 1.50 Hour |
Environmental Conditions
| Maximum Operating Temperature: | 104°F (40°C) |
| Storage Temperature: | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation: | 10000 ft |
| Maximum Storage Elevation: | 50000 ft |
| Storage Relative Humidity: | 0% - 95% |
| Sound Emission: | 55 dB |
Physical Characteristics
| Color Family: | Silver |
| Product Color: | Silver Gray |
| Height: | 1.69" |
| Width: | 17.01" |
| Depth: | 22.05" |
| Rack Height: | 1U |
| Form Factor: | Rack/Tower/Wall/Ceiling/Desktop Mountable |
| Mounting Preference: | No Preference |
| Weight (Approximate): | 35.05 lb |
Miscellaneous
| For Country/Region: | United States |
| Certifications & Standards: | UL/cUL listed|FCC |
| Product Take Back Program: | Yes |
| Package Contents: |
|
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL2K2RM1UNC_ROHS_DECLARATION&p_FileName=SRTL2K2RM1UNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://download.schneider-electric.com/files?p_Doc_Ref=SRTL2K2RM1UNC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL: | https://download.schneider-electric.com/files?p_Doc_Ref=SRTL2K2RM1UNC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP2311012EN&p_File_name=ENVPEP2311012_V1.pdf |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI2311011_V1&p_File_name=ENVEOLI2311011_V1.pdf |
| REACH free of SVHC: | No |
| SCIP Number: | 8c493f2b-82c6-495f-a54a-f7d594e2b537 |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging: | No |
| Reach Compliance Date: | 7/18/2025 |
| Sustainable Packaging: | No |
| Packaging Contains Recycled Cardboard: | Yes |
Warranty
| Limited Warranty: | 5 Year |
