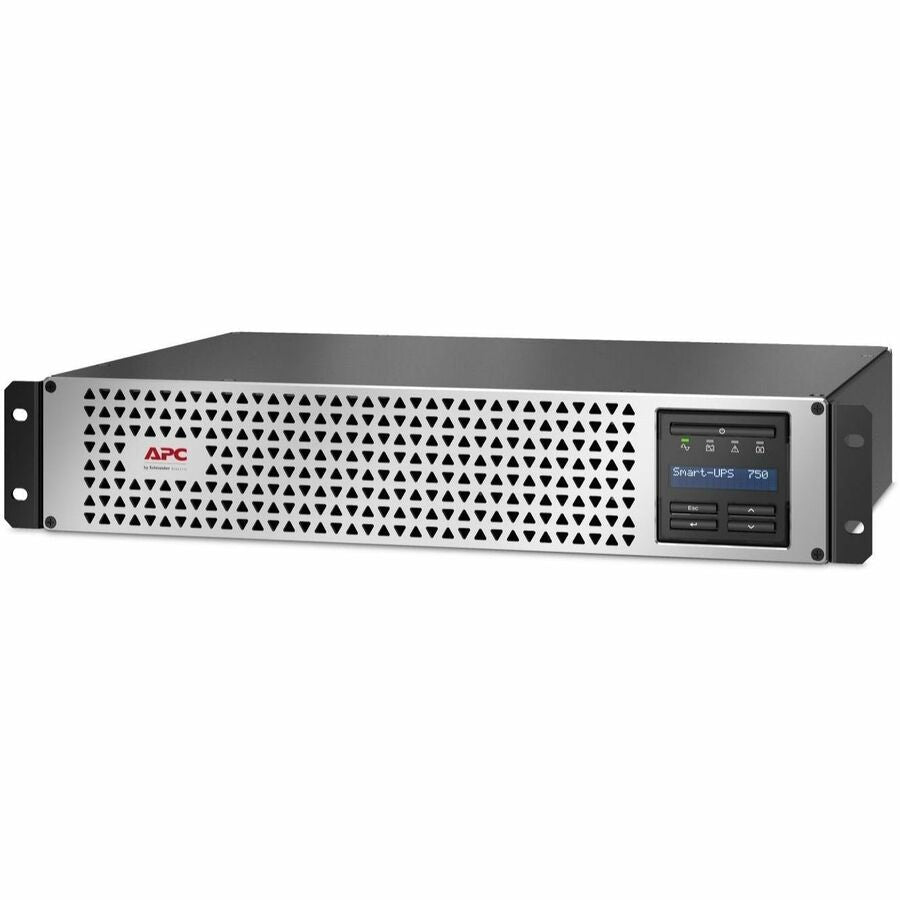

APC SMTL750RM2UC 750VA/600W 120V 6 x NEMA 5-15R 680J Sine Wave Short Depth UPS
$1,125.02
Sale price
$1,125.02
Regular price
Skip to product information
APC SMTL750RM2UC 750VA/600W 120V 6 x NEMA 5-15R 680J Sine Wave Short Depth UPS
$1,125.02
Sale price
$1,125.02
Regular price
General Information
| This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. More from the Manufacturer |
Technical Information
| AVR: | Yes |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15P |
| Receptacle Detail: | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 6 |
| Overload Protection: | Yes |
| Cord Length: | 8 ft |
| Transfer Time: | 10 ms |
| Phase: | Single Phase |
| Application/Usage: | Server |
| Application/Usage: | POS Terminal |
| Application/Usage: | Network Device |
| Application/Usage: | Switch |
| Application/Usage: | Router |
| Application/Usage: | Network Hub |
| Application/Usage: | Security System |
| Application/Usage: | Communication System |
Power Description
| Load Capacity (VA): | 750 VA |
| Load Capacity (Watt): | 600 W |
| Input Voltage: | 120 V AC |
| Input Voltage Range: | 82 V AC - 144 V AC |
| Output Voltage: | 120 V AC |
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 680 J |
Management
| Network Management: | SmartConnect |
| Alarm: | On Battery |
| Alarm: | Low Battery |
| Alarm: | Configurable Delay |
Controls/Indicators
| Status Indicators: |
LED status indicators:Quickly understand unit and power status with visual indicators.
|
Interfaces/Ports
| Serial Port: | Yes |
| Network (RJ-45): | Yes |
| USB (HID Compliant) Port: | Yes |
Battery Information
| Battery Chemistry: | Lithium Ion (Li-Ion) |
| Backup/Run Time (Full Load): | 5.70 Minute |
| Backup/Run Time (Half Load): | 13.80 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes |
Environmental Conditions
| Maximum Operating Temperature: | 104°F (40°C) |
| Storage Temperature: | -40°F (-40°C) - 95°F (35°C) |
| Maximum Operating Elevation: | 10000 ft |
| Maximum Storage Elevation: | 25000 ft |
| Operating Humidity: | 0% - 95% |
| Storage Relative Humidity: | 0% - 95% |
| Sound Emission (A-Weighted): | 41 dB(A) |
| Product Color: | Black |
| Thermal Dissipation: | 20.51 W |
Physical Characteristics
| Color Family: | Dual Color |
| Product Color: | Silver |
| Height: | 3.39" |
| Width: | 17.24" |
| Depth: | 12.52" |
| Rack Height: | 2U |
| Form Factor: | Rack-mountable |
| Mounting Preference: | Lower |
| Weight (Approximate): | 34 lb |
Miscellaneous
| For Country/Region: | United States |
| Package Contents: |
|
| Certifications & Standards: | NOM |
| Software Included: | Powerchute Serial Edition |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| REACH free of SVHC: | No |
| WEEE Statement: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin: | Philippines |
| SCIP Number: | c151e0e4-d5aa-4595-a297-c593b8808426 |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging: | No |
| Reach Compliance Date: | 12/10/2025 |
| Sustainable Packaging: | No |
| Packaging Contains Recycled Cardboard: | Yes |
Warranty
| Limited Warranty: | 5 Year |
| Directly Connected Equipment Guarantee: | $150000 Lifetime |
