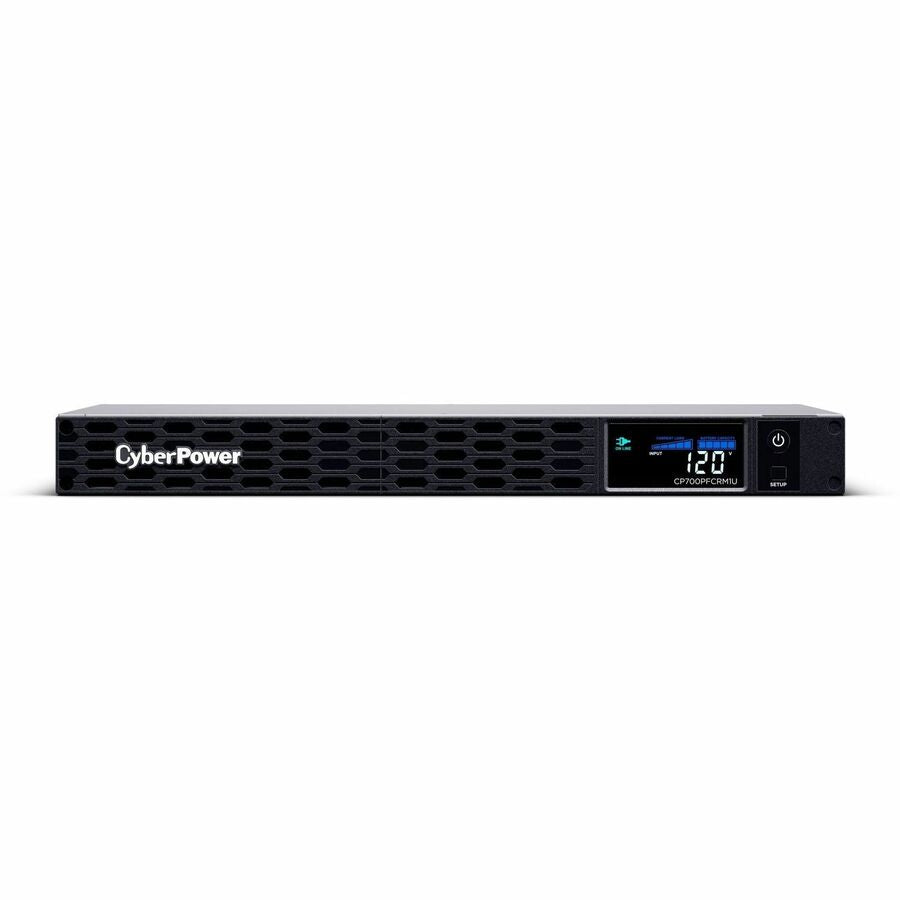

CyberPower CP700PFCRM1U PFC Sinewave UPS Systems
$389.10
Sale price
$389.10
Regular price
Skip to product information
CyberPower CP700PFCRM1U PFC Sinewave UPS Systems
$389.10
Sale price
$389.10
Regular price
General Information
|
The CP700PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility. The CP700PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 9.04 inches in depth, the CP700PFCRM1U fits comfortably in short depth rack installations where space is at a premium. The CP700PFCRM1U comes with a three-year warranty (including coverage of batteries) and a $300,000 Connected Equipment Guarantee. More from the Manufacturer |
Technical Information
| AVR: | Yes |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 6 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 4 |
| Number of Surge-only Outlets: | 2 |
| Dataline Protection: | RJ-45 |
| Overload Protection: | Yes |
| Cord Length: | 10 ft |
| Transfer Time: | 8 ms |
| EMI/RFI Noise Filter: | Yes |
| Energy Saving: | GreenPower UPS™ Bypass Technology |
| Application/Usage: | Security System |
| Application/Usage: | Audio/Video Equipment |
| Application/Usage: | Workstation |
| Application/Usage: | Corporate |
| Application/Usage: | Server |
| Application/Usage: | Network Device |
| Application/Usage: | Telecommunication |
| Surge Suppression: | Yes |
| Features: | Audible Alarm |
Power Description
| Load Capacity (VA): | 700 VA |
| Load Capacity (Watt): | 400 W |
| Input Voltage: | 120 V AC |
| Input Voltage Range: | 88 V AC - 144 V AC |
| Output Voltage: | 120 V AC |
| Input Frequency: | 50 Hz |
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 1150 J |
| Circuit Breaker: | Yes |
| Output Power Factor: | 0.57 |
Display & Graphics
| Display: | LCD |
Management
| Network Management: | Dry Contact |
| Network Management: | SNMP/HTTP Remote Monitoring |
| Alarm: | Battery Mode |
Controls/Indicators
| Status Indicators: | Power On |
Interfaces/Ports
| Serial Port: | Yes |
| Network (RJ-45): | Yes |
| USB: | Yes |
| USB (HID Compliant) Port: | Yes |
Battery Information
| Number of Batteries: | 2 |
| Battery Characteristics: | Sealed |
| Battery Chemistry: | Lead Acid |
| Battery Size: | 6V |
| Battery Capacity: | 8000 mAh |
| Backup/Run Time (Full Load): | 1.50 Minute |
| Backup/Run Time (Half Load): | 10.50 Minute |
| Typical Battery Recharge Time: | 8 Hour |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes |
Environmental Conditions
| Minimum Operating Temperature: | 32°F (0°C) |
| Maximum Operating Temperature: | 104°F (40°C) |
| Storage Temperature: | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation: | 10000 ft |
| Maximum Storage Elevation: | 50000 ft |
| Operating Humidity: | 0% - 95% |
| Storage Relative Humidity: | 0% - 95% |
Physical Characteristics
| Color Family: | Black |
| Product Color: | Black |
| Height: | 1.73" |
| Width: | 17.05" |
| Depth: | 9.04" |
| Rack Height: | 1U |
| Form Factor: | Rack-mountable |
| Weight (Approximate): | 18.30 lb |
Miscellaneous
| Additional Information: |
|
| Certifications & Standards: | UL1778 |
| Energy Star: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
Warranty
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | Three-year warranty (including coverage of batteries) |
| Directly Connected Equipment Guarantee: | $300000 Lifetime |
