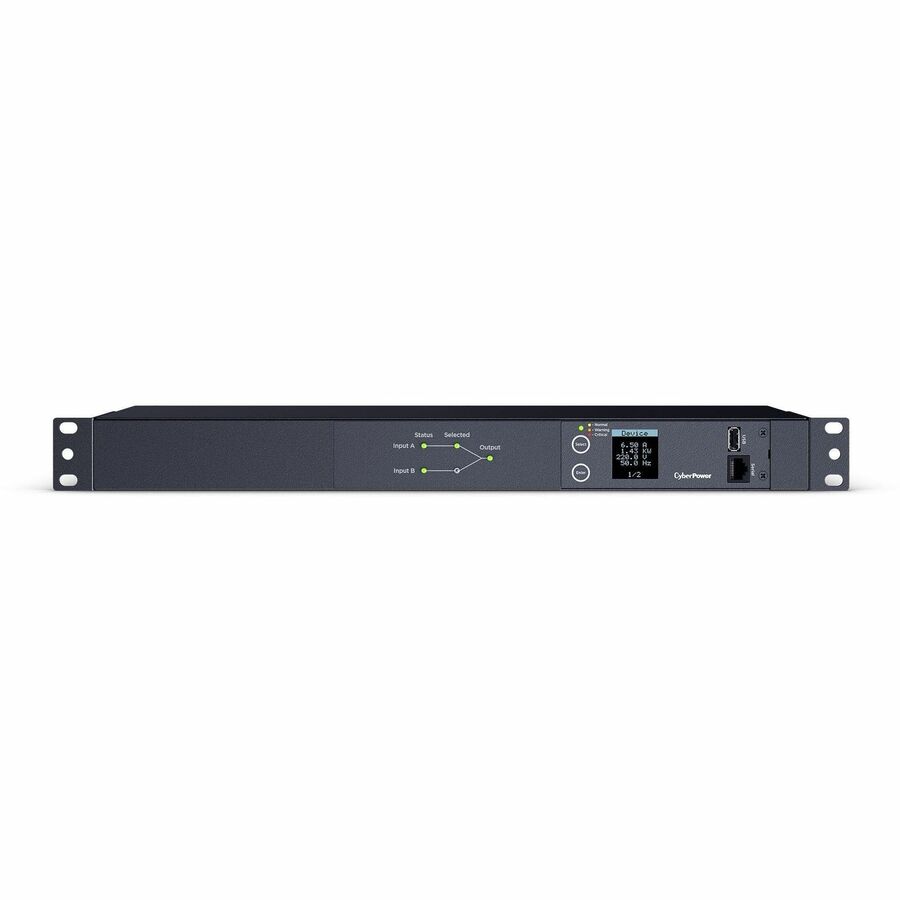

CyberPower PDU24004 Single Phase 200 240 VAC 15A Metered ATS PDU
$483.61
Sale price
$483.61
Regular price
Skip to product information
CyberPower PDU24004 Single Phase 200 240 VAC 15A Metered ATS PDU
$483.61
Sale price
$483.61
Regular price
General Information
|
Ensure continued operation of critical devices with the CyberPower PDU24004 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU24004 supports inputs between 200-240V and includes (12) IEC C13 outlets. Dual IEC C14 power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24004 is protected by a three-year limited warranty. More from the Manufacturer |
Technical Information
| PDU Type: | Metered |
| Design: | Modular |
| Phase: | Single Phase |
| Plug/Connector Type: | IEC 60320 C14 |
| Plug/Connector Detail: | 2 x IEC 60320 C14 |
| Receptacle Type: | IEC 60320 C13 |
| Receptacle Detail: | 12 x IEC 60320 C13 |
| Protection Type: | Overload Protection |
| Locking Receptacles: | Cord Retention Tray |
| Features: | LCD Display |
Power Description
| Input Voltage: | 230 V AC |
| Input Voltage Range: | 200 V AC - 240 V AC |
| Output Voltage: | 200 V AC |
| Output Voltage: | 240 V AC |
| Output Voltage Range: | 200 V AC - 240 V AC |
| Input Current: | 15 A |
| Input Frequency: | 60 Hz |
| Circuit Breaker: | Yes |
Management
| Management: |
Protocols:
|
Interfaces/Ports
| Network (RJ-45): | Yes |
Physical Characteristics
| Color Family: | Black |
| Product Color: | Black |
| Product Material: | Metal |
| Mounting Orientation: | Horizontal |
| Mount Type: | Rack-mountable |
| Form Factor: | Rack |
| Rack Height: | 1U |
| Cord Length: | 10 ft |
| Height: | 1.8" |
| Width: | 17.1" |
| Depth: | 8.5" |
| Weight (Approximate): | 7.40 lb |
Environmental Conditions
| Minimum Operating Temperature: | 32°F (0°C) |
| Maximum Operating Temperature: | 113°F (45°C) |
| Minimum Storage Temperature: | 5°F (-15°C) |
| Maximum Storage Temperature: | 131°F (55°C) |
Miscellaneous
| Additional Information: |
|
| Application/Usage: | Data Center |
| Application/Usage: | Network Closet |
| Certifications & Standards: | UL62368 via cTUVus |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) |
Warranty
| Limited Warranty: | 3 Year |
